💎 OpenSharpCAD

Parametric 3D CAD Using C# and .NET

Design 3D printable parts, mechanical assemblies, and parametric models with the power, speed, and elegance of C#.
Inspired by OpenSCAD • Powered by Microsoft Roslyn • Hardware-accelerated OpenGL / WebGL

📸 Screenshots • 📺 Video • ⚡ Features • 🔄 OpenSCAD vs OpenSharpCAD • 💡 Examples • 🌐 Documentation • 🚀 Quick Start • 🛠️ Build • 🔒 Security

---

📸 Screenshots

💻 Main IDE & Live 3D Viewport

The OpenSharpCAD IDE: Live C# scripting with Roslyn compilation on the left, real-time OpenGL 3D viewport with interactive trackball camera and axis gizmo on the right.

📚 Interactive In-App Cheat Sheet & Reference (F1)

The in-app Cheat Sheet & Reference window (press F1): Category tabs, method signatures, live 3D preview viewports, and one-click code insertion.

---

📺 Video Demo

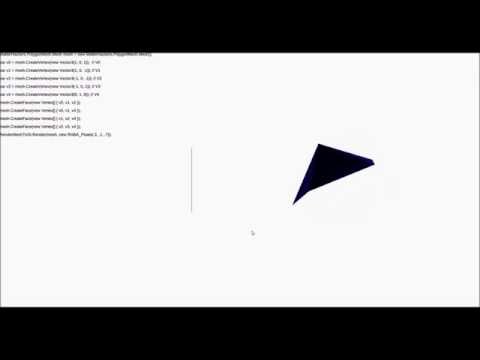

▶️ Click here to watch the OpenSharpCAD live demonstration on YouTube

---

⚡ Key Features

• 📐 Intuitive CSG Boolean Math: Compose 3D solids naturally using overloaded operators (+ Union, - Difference, * Intersection).
• 🧊 Rich 3D Solid Primitives: Built-in parameterized Box, Cylinder, Sphere, Torus, and Cone.
• ✏️ 2D Primitives & 3D Extrusions: Circle, Rectangle, Square, Line, Point, Path, LinearExtrude, and RotateExtrude (lathe/revolve).
• 🔄 Parametric Transformations: Translate, Rotate, Scale, and Mirror (available as constructor wrappers or fluent extension methods).
• 🎯 Topology & Anchor Queries: Access .TopCenter, .BottomCenter, .Corners, .BoundingEdges, and .GetUniqueVertices() to attach secondary parts parametrically without manual coordinate calculation.
• 🎨 RGB & RGBA Color Styling: Render custom colors with Draw(shape, RGB(r, g, b)) or RGBA(...).
• ⚡ Instant Live Recompilation: Automatic compilation and 3D preview updates powered by Microsoft Roslyn upon code modifications.
• 📁 File Management: Create new files, open existing scripts, save, and save as with native system dialogs and keyboard shortcuts (Ctrl/Cmd+N, Ctrl/Cmd+O, Ctrl/Cmd+S, Ctrl/Cmd+Shift+S).
• 🎬 Parametric Animation System: OpenSCAD-compatible $t (or t / Time) animation variable with Play/Pause controls, automatic Time tracking, customizable FPS, and Steps settings.
• 📚 Interactive 3D Documentation:
  • In-app reference cheat sheet (press F1 or click Help).
  • Standalone Three.js WebGL documentation viewer with side-by-side 3D models and Dracula-themed C# snippets.
• 💻 Cross-Platform: Native support for macOS (Intel & Apple Silicon), Windows, and Linux via .NET 10.0 and GLFW.

---

🔄 OpenSCAD vs OpenSharpCAD

OpenSharpCAD takes the declarative, code-first philosophy pioneered by OpenSCAD and elevates it with the performance, type safety, and rich language features of modern C# and .NET 10.

🧩 Side-by-Side: The Classic OpenSCAD Logo

Here is how the iconic OpenSCAD logo.scad (a sphere hollowed out by three orthogonal cutting cylinders) is written in both systems:

OpenSCAD (logo.scad)

OpenSharpCAD (logo.cs)

// OpenSCAD declarative module Logo(50); module Logo(size=50, $fn=100) { hole = size / 2; cylinderHeight = size * 1.25; // Nested prefix difference block difference() { sphere(d=size); cylinder(d=hole, h=cylinderHeight, center=true); rotate([90, 0, 0]) cylinder(d=hole, h=cylinderHeight, center=true); rotate([0, 90, 0]) cylinder(d=hole, h=cylinderHeight, center=true); } }

// OpenSharpCAD C# function CsgObject Logo(double size = 50.0, int fn = 100) { double holeRadius = (size / 2.0) / 2.0; double cylinderHeight = size * 1.25; // 1. Central sphere of diameter 'size' (radius = size / 2) var sphere = new Sphere(radius: size / 2.0); // 2. Three orthogonal cutting cylinders along Z, X, and Y axes var cylZ = new Cylinder(radius: holeRadius, height: cylinderHeight, sides: fn); var cylX = new Rotate(cylZ, y: MathHelper.DegreesToRadians(90)); var cylY = new Rotate(cylZ, x: MathHelper.DegreesToRadians(90)); // 3. Perform boolean subtraction using natural C# operator overloading (-) return sphere - cylZ - cylX - cylY; } // Generate the 50 mm logo Draw(Logo(50), RGB(255, 170, 50));

---

📊 Feature Comparison Matrix

Feature	OpenSCAD	OpenSharpCAD
Language	Custom functional DSL (specialized, dynamic)	Standard C# 13 / .NET 10 (general-purpose, OOP + functional)
CSG Operations	Nested block statements (union(), difference(), intersection())	Natural operator overloading (+, -, *)
Type Safety	Dynamic typing (runtime variable evaluation)	Static strong typing with Roslyn compiler type safety
Compiler Diagnostics	Console messages on render / export	Real-time red squiggles, line/column markers, and Problems panel
IntelliSense & Autocomplete	Basic word completion	Full Roslyn completion engine with parameter info and docs
Transformations	Hierarchical prefix blocks (translate() rotate() { ... })	Fluent method chaining (.Translate().Rotate()) or constructor wrappers
Code Structure	Modules (module) and functions (function)	Standard C# methods, classes, records, extension methods, and namespaces
Ecosystem & Libraries	Proprietary .scad script includes	Full .NET ecosystem, NuGet packages, math libraries, and LINQ queries
Animation Variable	$t (0.0 to 1.0)	$t (transparently supported for OpenSCAD parity), t, or Time
Animation Engine	Sequential CPU rendering per frame	Whole-animation precalculation & caching with instant 60 FPS playback + bottom controls (Play/Pause, Precalculate, Time, FPS, Steps)
Rendering Architecture	CGAL-based CPU CSG mesh generation	Roslyn compiled assemblies + hardware-accelerated OpenGL / WebGL rendering
Unit Testing	External community test harnesses	Native integration with NUnit, xUnit, and dotnet test

---

🚀 Key Advantages of OpenSharpCAD

1. Natural Mathematical CSG: No deeply nested braces. Compose complex boolean geometries with simple algebra: Draw((outerBox + cylinder) - mountingHoles).
2. First-Class Modern Tooling: Enjoy syntax highlighting, inline diagnostic tooltips, jump-to-error navigation, and Roslyn completion directly inside the application.
3. Familiar to OpenSCAD Users: Transitioning is effortless—concepts like $t for animations, parametric primitives (Sphere, Cylinder, Box), and degree-based math helpers work out of the box.
4. Reusability & Extensibility: Write standard C# classes, share CAD libraries across projects via NuGet, and write automated unit tests for dimensional validation.

---

💡 Code Examples

1️⃣ Basic CSG Operations & Colors (Featured in Screenshot)

Create shapes, apply rotations, perform boolean union and subtraction, and draw with custom RGB colors:

var holesize = 4;

// 1. Create a box and a 45-degree rotated box
var box = new Box(12, 20, 20);
var rotated = new Rotate(box, x: MathHelper.DegreesToRadians(45));

// 2. Create a cylinder for cutting a hole
var cylinder = new Cylinder(6, 20, 60);

// 3. Draw CSG composite with default grey: (box + rotated) - cylinder
Draw(box + rotated - cylinder);

// 4. Create and translate a mounting bar, drawn with custom RGB color
var translated = new Translate(new Box(40, 10, 10), 0, holesize, holesize);
Draw(translated, RGB(80, 180, 255));

---

2️⃣ CSG Boolean Math (Union, Difference, Intersection)

OpenSharpCAD uses intuitive operator overloading for Constructive Solid Geometry:

var outer = new Box(30, 30, 30);
var cutter = new Cylinder(radius: 10, height: 40);
var innerSphere = new Sphere(radius: 18);

// Difference (-): Drill a hole through the box
var hollowBox = outer - cutter;

// Union (+): Combine two solids into one
var combined = hollowBox + new Cylinder(5, 50).Translate(0, 0, 10);

// Intersection (*): Keep only overlapping volume
var lens = outer * innerSphere;

Draw(combined, RGB(255, 140, 0));

---

3️⃣ 2D Shapes & 3D Extrusions

Design 2D cross-sections and extrude or revolve them into 3D solids:

// Linear extrusion of a 2D rectangle
var rect2D = new Rectangle(width: 25, height: 15);
var extrudedSolid = new LinearExtrude(rect2D, height: 20);
Draw(extrudedSolid, RGB(50, 205, 50));

// Rotational extrusion (lathe / revolve) around Z axis
var crossSection = new Circle(radius: 6);
var revolvedTorus = new RotateExtrude(crossSection, sweepDegrees: 360);
Draw(revolvedTorus, RGB(186, 85, 211));

---

4️⃣ Parametric Geometry & Topology Queries

Extract vertices, edges, and anchor points to mount secondary parts parametrically:

var baseCube = new Box(24, 24, 24);

// Spawn spherical node joints at each corner vertex of the cube
CsgObject joints = null;
foreach (var pt in baseCube.GetUniqueVertices())
{
    var node = new Sphere(radius: 3.5).Translate(pt);
    joints = (joints == null) ? node : joints + node;
}

// Mount a cylinder tower centered on the top face
var tower = new Cylinder(radius: 6, height: 16).Translate(baseCube.TopCenter);

Draw(baseCube, RGB(60, 120, 220));
Draw(joints, Color.Orange);
Draw(tower, Color.Green);

---

🌐 Interactive Documentation

• 📖 Markdown API Reference: Full reference for all 3D solids, 2D primitives, transformations, and global functions.
• 🎮 Interactive 3D Web Documentation (doc/):
  • doc/index.html — Interactive Three.js 3D gallery with live 3D models and Dracula-themed C# snippets.
  • doc/api.html — Full searchable web API reference.
  • Run locally:

    python3 -m http.server 8080 --directory doc

    Then open http://localhost:8080/index.html in your browser.
• 💡 In-App Cheat Sheet: Press F1 or click the Help button inside the application for real-time reference and interactive viewports.
• 📁 Command Line Examples: See standalone batch CAD examples in CommandLineExamples/.

---

🚀 Getting Started

📋 Prerequisites

• .NET 10.0 SDK
• GLFW:
  • Windows: The native GLFW binary is supplied automatically by the glfw NuGet package.
  • macOS & Linux: Build uses bundled binaries in the repository, or install GLFW via your system package manager (brew install glfw on macOS, sudo apt install libglfw3-dev on Ubuntu/Debian).

📦 Installation

Clone the repository including all submodules:

git clone --recursive https://github.com/roboter/OpenSharpCAD.git
cd OpenSharpCAD

---

🛠️ Build Instructions

🍎 macOS & 🐧 Linux

Build and run using the .NET CLI:

# Build the project
dotnet build OpenSharpCAD/OpenSharpCAD.csproj

# Run the application
dotnet run --project OpenSharpCAD/OpenSharpCAD.csproj

🪟 Windows

Option 1: .NET CLI

# Build the project
dotnet build OpenSharpCAD/OpenSharpCAD.csproj

# Run the application
dotnet run --project OpenSharpCAD/OpenSharpCAD.csproj

Option 2: Visual Studio

1. Open OpenSharpCAD.sln in Visual Studio 2022.
2. Set OpenSharpCAD as the Startup Project.
3. Press F5 to build and run.

---

🔒 Security Considerations

Warning

OpenSharpCAD scripts (.cs) contain full, executable C# source code. Opening and running an untrusted .cs CAD script is equivalent to compiling and executing an arbitrary application on your machine. Only open scripts from sources you know and trust.

⚠️ Can a malicious user do bad things with a .cs CAD file?

Yes. Unlike passive 3D mesh formats (such as STL, STEP, or 3MF) or sandboxed domain-specific languages (such as classic OpenSCAD), OpenSharpCAD uses the Microsoft Roslyn C# compiler to compile user scripts into actual .NET assemblies that execute dynamically within the host process.

Because scripts run with the privileges of the active user and have access to standard .NET runtime libraries, an untrusted or malicious .cs file could theoretically:

Threat Vector	Potential Malicious Impact
Arbitrary File Access	Reading sensitive files (SSH keys, config files, passwords) or modifying/deleting data via System.IO.
Process Execution	Spawning external processes, shell scripts, or native binaries via System.Diagnostics.Process.
Network Communication	Exfiltrating data or downloading external payloads via System.Net.Http.HttpClient or raw sockets.
Denial of Service (DoS)	Freezing the application or exhausting CPU and memory via infinite loops, unconstrained recursion, or memory allocation bombs (while(true), memory spikes).

🛡️ Built-in Roslyn Security Whitelist & Guardrails

To prevent untrusted scripts from performing malicious system actions, OpenSharpCAD implements a strict two-tier compiler security guardrail:

1. Roslyn Metadata Reference Whitelist:

   • The dynamic compiler (CodeHelper) explicitly restricts referenced assemblies to an allowed whitelist (System.Private.CoreLib, System.Runtime, System.Collections, System.Linq, MatterHackers.Csg, VectorMath, etc.).
   • Assemblies for process execution (System.Diagnostics.Process), raw networking (System.Net.Http, System.Net.Sockets), cryptography, and native interop are completely excluded from compilation references.
   • Any script attempting to call excluded APIs fails at compile time (CS0234: The type or namespace name does not exist).

2. AST Pre-Compilation Syntax Inspection:

   • Before emitting code, the syntax tree is analyzed using Roslyn syntax analysis.
   • Explicitly rejects:
     • unsafe keyword and raw pointer operations (OSCAD001).
     • Forbidden using directives such as using System.IO;, using System.Diagnostics;, using System.Net;, using System.Reflection; (OSCAD002).
     • Qualified member calls to file I/O, process execution, or reflection (System.IO.File, Directory, Process, Environment.Exit) (OSCAD003).

⚠️ Dangers That Still Remain: Why a Whitelist is NOT a 100% Sandbox

While the Roslyn reference whitelist and AST syntax filters prevent scripts from accessing the local filesystem, network, or spawning shell processes, in-process compilation is never a 100% security sandbox in modern .NET. Untrusted scripts can still cause significant disruption:

Remaining Threat	Mechanism	Real-World Impact
CPU Denial of Service (Freeze)	while (true) {} or infinite mathematical loops	Pegs CPU cores at 100% and completely locks up the UI thread, forcing the user to force-quit the application.
Memory Exhaustion (OOM Crash)	var list = new List<byte[]>(); while(true) list.Add(new byte[100_000_000]);	Exhausts system RAM until the operating system or runtime terminates the process with an OutOfMemoryException.
Stack Overflow (Instant CLR Kill)	void Loop() => Loop(); Loop();	Infinite call stack recursion triggers a fatal StackOverflowException, which terminates the entire host .NET runtime immediately with zero recovery.
Geometry / Mesh Bombs	Nesting thousands of CSG boolean cuts or extruding a path with 1,000,000+ vertices	Overwhelms the 3D polygon triangulator and CSG engine, consuming gigabytes of memory and rendering the system unresponsive.
Crash & Unsaved Work Loss	Any fatal exception in the shared process space	Because user scripts execute directly inside OpenSharpCAD's host process, a fatal failure crashes the entire IDE, discarding any unsaved work.
Obfuscated Reflection / Evasion	Constructing type names dynamically via string concatenation or byte decoding	Advanced evasion techniques can attempt to circumvent static AST checks to access runtime internals.

Important

Core Security Principle: The Roslyn whitelist and AST filters provide a valuable defense-in-depth layer that blocks accidental or obvious malicious calls. However, the operating system process is the only true security boundary.

If you need to evaluate completely untrusted third-party CAD scripts in a web service, CI/CD pipeline, or public server, always isolate OpenSharpCAD inside a locked-down Docker container or unprivileged VM with hard memory/CPU limits and disabled networking.

🛡️ Safe Usage Guidelines

1. Treat unknown .cs files with care: Inspect unfamiliar scripts before opening or executing them.
2. Never run OpenSharpCAD with elevated privileges: Avoid running the application as root (macOS/Linux) or Administrator (Windows).
3. Use containerized sandboxes for automated services: Run automated batch evaluation in an isolated environment (docker run --network none --memory 512m --cpus 1.0 ...).

---

🔗 Links & Credits

• 🌟 Inspiration: MatterCAD - Design Your 3D Parts In C# by MatterHackers.
• 📺 Video Demo: YouTube Demo
• 📄 License: BSD 2-Clause License
